SKU: 8383

Blind rivet 3.2 × 6 mm Black | Aluminum/Steel | Mounting clamp 0754

Name: Blind rivet 3.2 × 6 mm Black | Aluminum/Steel | Mounting clamp 0754
Brand: Schweighöfer Tore
SKU: 8383
Price: 77.14 EUR
Availability: InStock

€77,14

Tax included Shipping calculated at checkout.

Crowd

Description

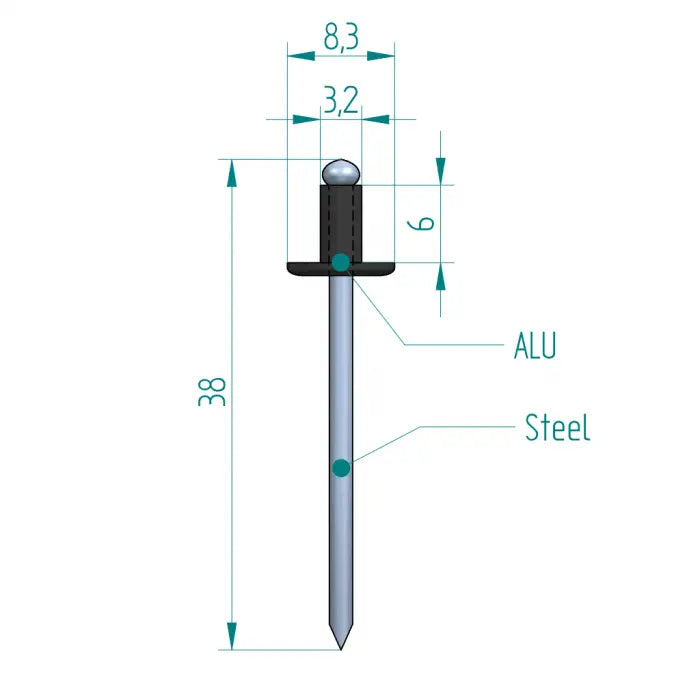

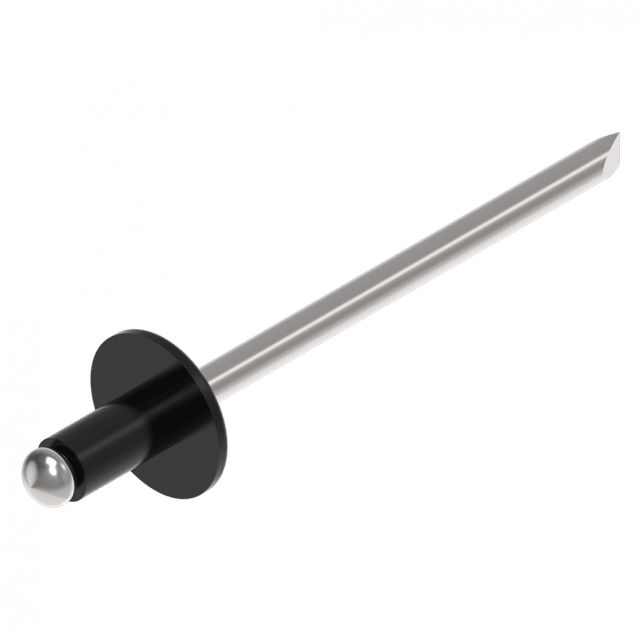

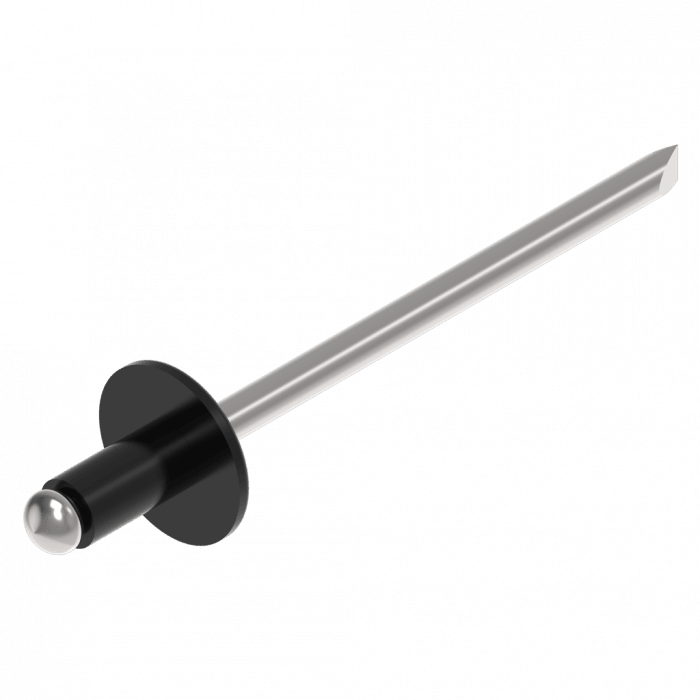

Blind rivet 3.2 × 6 mm Black | Aluminum/Steel | Fastening for clamping bracket 0754

This black 3.2 × 6 mm aluminum/steel blind rivet was specially developed for the secure fastening of the side clamping bracket No. 0754 to the lintel 0740/0742 – inconspicuous, stable and ideal for professional gate construction applications.

Technical data

Article number:
8383

Area of application:
IND & RES

ERA-RES:
Yes

On the goal sheet:
Yes

Diameter:
3.2 mm

Length:
6 mm

Type:
Blind rivets

Material:
Aluminium/steel

Color:
Black

Weight:
0.01 kg

Application:
Mounting clamp bracket 0754 on the lintel 0740/0742

Features and benefits

Ideal for mounting the clamping bracket 0754 on lintel profiles 0740/0742.
Discreet black coating – perfect for dark gate interiors.
Aluminum body for easy setting, steel mandrel for high holding power.
3.2 mm diameter for precise, small rivet points.
Vibration-resistant – ideal for sectional doors with frequent use.
Suitable for industrial and garage applications (IND & RES).

Application and assembly

The black blind rivet 3.2 × 6 mm is used to securely connect the side clamping bracket 0754 to the lintel profile 0740/0742. Its short length of 6 mm allows for a precise, strong rivet point, especially on thin-walled components.

Safety and occupational health:
When installing blind rivets, a stable working position, correctly adjusted rivet guns, and personal protective equipment must be ensured. Faulty rivet connections can impair the gate's function. Tormeister 24 recommends installation only by qualified installers.

Practical example

During gate maintenance, a damaged clamping bracket 0754 was replaced. The black blind rivet 3.2 × 6 mm allowed for an inconspicuous, clean attachment to the lintel 0740 – perfect for a harmonious overall appearance of the gate.

Relevant categories & accessories

FAQ – Frequently Asked Questions

Is the rivet suitable for thin-walled components?

Yes, the short 6 mm rivet is specifically designed for thin-walled profiles and fittings.

Why black coating?

For a clean, inconspicuous appearance in dark or visually sensitive areas.

What tools are needed?

A manual or pneumatic blind rivet gun with a 3.2 mm bore.

Order black blind rivets now

Secure your 3.2 × 6 mm black blind rivets – perfect for attaching the 0754 clamping bracket and many other gate construction applications.
