SKU: SG2215R-0995

Torsion spring 51×6.5×995 mm RHW | 1" shaft 25.4 mm | Powder-coated grey | Pre-assembled with 2 spring heads (2P)

Name: Torsion spring 51×6.5×995 mm RHW | 1" shaft 25.4 mm | Powder-coated grey | Pre-assembled with 2 spring heads (2P)
Brand: Schweighöfer Tore
SKU: SG2215R-0995
Price: 73.5 EUR
Availability: InStock

€73,50

Tax included Shipping calculated at checkout.

Description

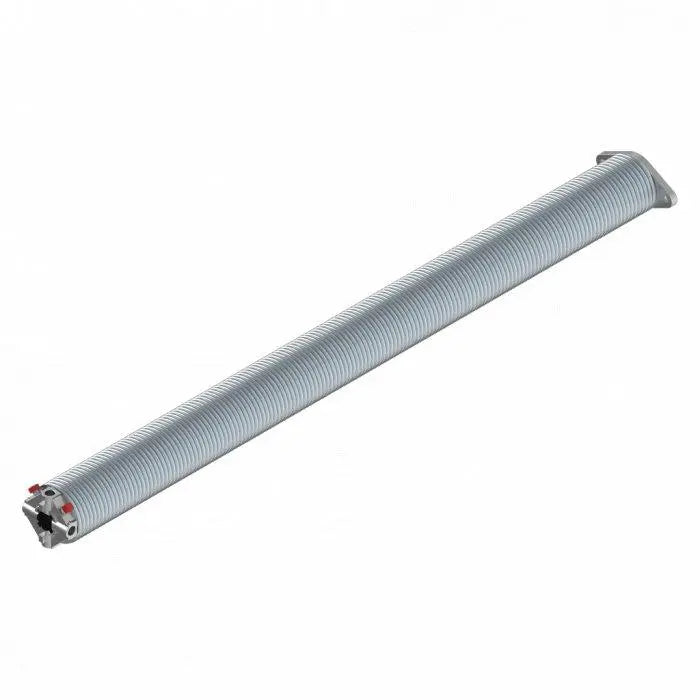

Torsion spring 51×6.5×995 mm RHW | 1" shaft 25.4 mm | Powder-coated grey | 2P Pre-assembled

The 51×6.5×995 mm RHW torsion spring is a robust, powder-coated garage door spring for sectional doors with a 1" (25.4 mm) shaft. Pre-assembled with two spring heads, waxed and corrosion-resistant – ideal for long service life and smooth operation.

🔧 Technical Data & Product Features

Article number:
SG2215R-0995

Area of application:
Garage / ERA-RES sectional doors

Length:
995 mm

Inner diameter:
51 mm

Wire thickness:
6.5 mm

Winding direction:
RHW (right-handed)

Wave:
1" (25.4 mm)

Surface:
Powder-coated exterior, wax film interior

Treatment:
Thermally discharged, blasted, corrosion-resistant

Color:
Gray

Pre-assembly:
2 spring heads (2P)

Weight:
7.18 kg

Unit:
Piece

💪 Advantages & Features

Right-hand wound RHW spring – suitable for garage doors with 1" shaft
6.5 mm wire thickness for high stability and even tension
Powder-coated inside and out, waxed inside – double protection against corrosion
Pre-assembled spring heads for quick and secure installation
Low-maintenance, durable design for regular use
Thermally treated for consistent spring force over many years

⚙️ Application & Assembly

The RHW spring is mounted on the left side of the gate (when viewed from the inside) in double spring systems. It balances the weight of the gate leaf and ensures smooth, even movement. Thanks to its powder coating and wax film, it is ideal for frequently used gates subject to heavy loads.

Safety tip: Only work on torsion springs using suitable tensioning tools (Ø 12.7 mm) and appropriate protective clothing. Tormeister 24 recommends installation by qualified personnel to ensure operational safety.

🏁 Practical example & areas of application

This RHW torsion spring, measuring 51×6.5×995 mm, is ideal for medium-sized garage doors with ERA-RES systems. It ensures smooth, vibration-free operation and constant tension – even with frequent daily use.

🔗 Accessories & Spare Parts

❓ FAQ – Frequently Asked Questions

What does RHW mean?

RHW stands for "Right Hand Wound". This spring is mounted on the left side of the gate (when viewed from the inside) in double spring systems.

How long does a powder-coated torsion spring last?

With proper installation and maintenance, it can achieve up to 25,000 opening cycles. Regular lubrication further extends its service life.

Why is pre-assembly with 2P spring heads advantageous?

The pre-assembled spring heads significantly simplify installation and reduce the risk of accidents during installation – ideal for safe assembly processes.

🛒 Order your torsion spring now

Order the torsion spring 51×6.5×995 mm RHW for 1" shaft 25.4 mm directly from Tormeister 24 – pre-assembled, corrosion-protected and ideal for long-term use.
